File:Battery assembly.png
From endrobene wiki :: ITE
Size of this preview: 741 × 599 pixels
Full resolution (1,873 × 1,515 pixels, file size: 200 KB, MIME type: image/png)

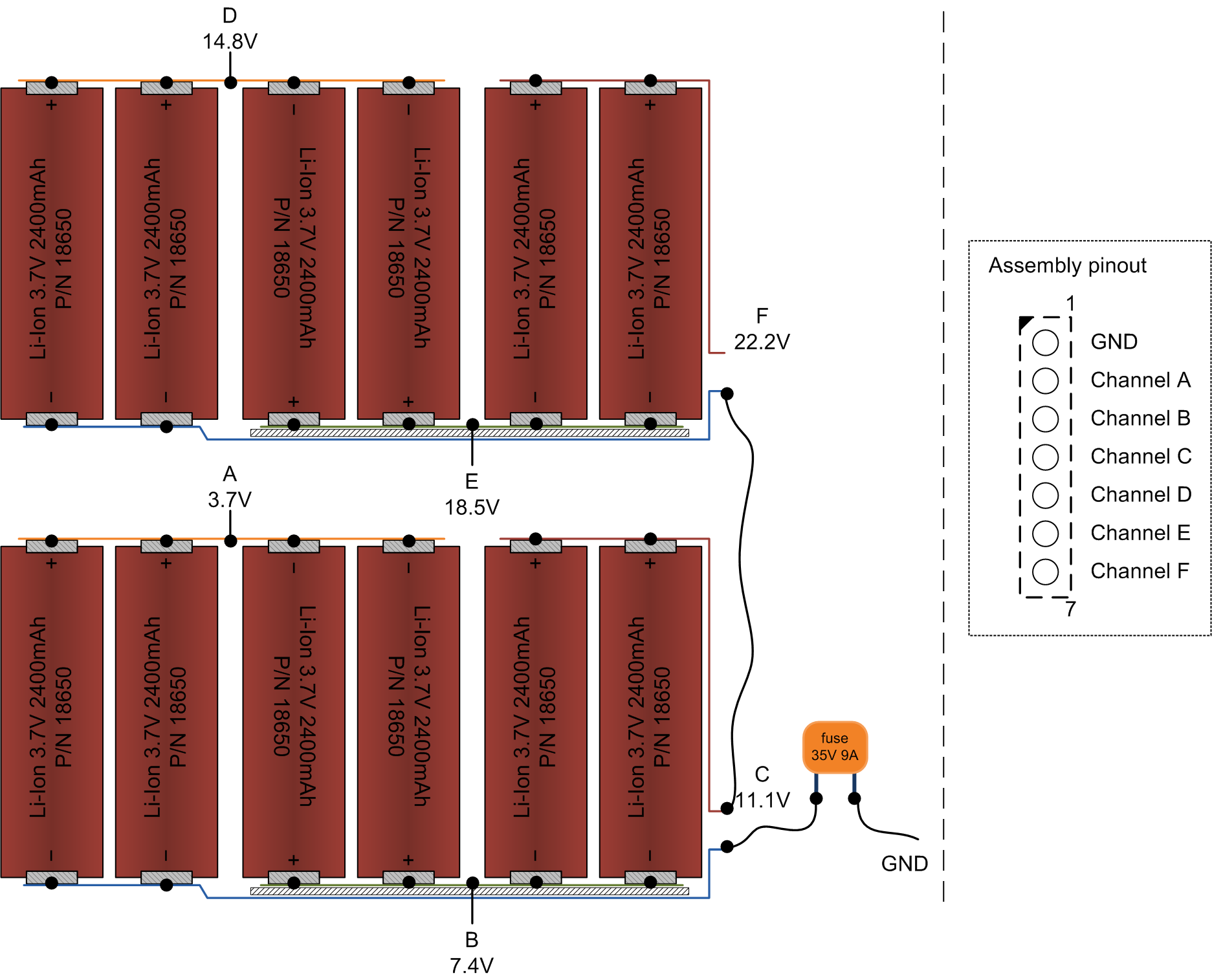

Single 22.2V battery assembly (on the left) and it's pinout (on the right). 12 batteries. Each battery is P/N 18650, 3.7V, 2400mAh (or higher capacity). Capacity is 4800 mAh. Power total 106.5 Wh = 383.4 kJ
