Mounting holes in a rear section
Rear section of a Platform - is a main placeholder for batteries pack and other power electronics.
There is an obvious need in delivering complete and easy to use mounting placeholder for different electronic equipment. The current solution - is to place batteries to the bottom. Over batteries section, a new section formed from a hanging aluminium plate, which is a base for electronic schemes. It is highly perforated, honeycomb-shaped placeholder, with fixed mounting grid. Its scheme is illustrated on picture below.
A hardware developer, who places additional electronic schemes, must take care to balance mass of the front and the rear sections (longitudinal balance). The resulting vector must not also be twisted transversally. Refer to the Platform design recommendations page for further advices.

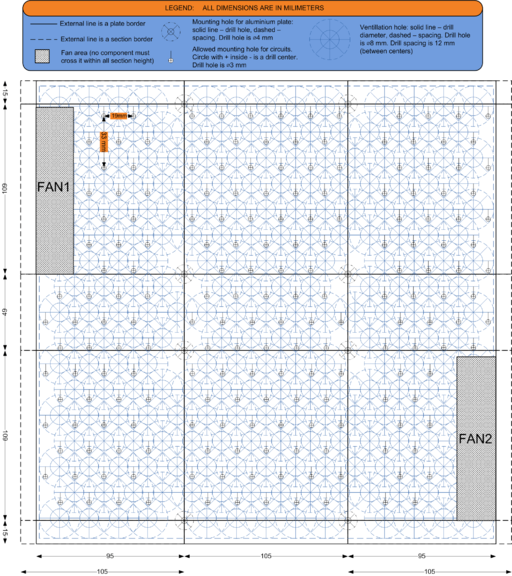

Grid of mounting drills
| Multiplier | Vertical (x 33mm) | Multiplier | Horizontal (x 19mm) |
|---|---|---|---|
| 1 | 20.6 / 33 | 1 | 19 |
| 2 | 53.6 / 66 | 2 | 38 |
| 3 | 86.6 / 99 | 3 | 57 |
| 4 | 119.6 / 132 | 4 | 76 |
| 5 | 152.6 / 165 | 5 | 95 |
| 6 | 185.6 / 198 | 6 | 114 |
| 7 | 218.6 / 231 | 7 | 133 |
| 8 | 251.6 / 264 | 8 | 152 |
| 9 | - / - | 9 | 171 |
| 10 | - / - | 10 | 190 |
| 11 | - / - | 11 | 209 |
| 12 | - / - | 12 | 228 |
| 13 | - / - | 13 | 247 |
| 14 | - / - | 14 | 266 |
| 15 | - / - | 15 | 285 |
